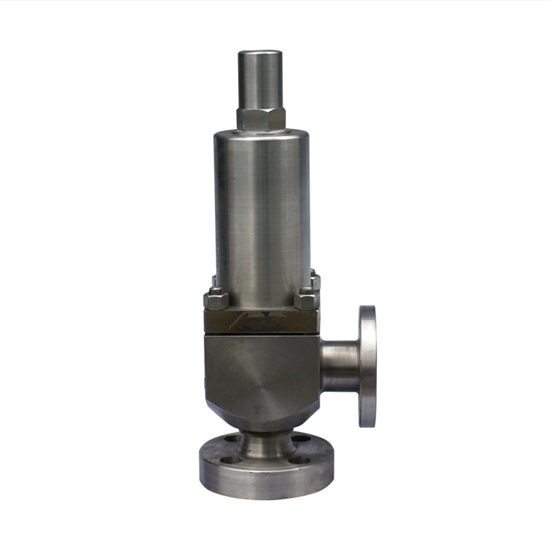

What's alloy high pressure relief valve

关注次数:

所属类别:Special alloy valve

What's alloy high pressure relief valve comprises a valve body, flange, a sealing plug, a spring, a spring seat, entrance and exit, the valve body is provided with a side entrance, the pressure relief valve are arranged in a sealing plug, a spring, a spring seat and the outlet is connected, the side sealing plug is provided with a flange face products, control valve the opening and closing of valve by sealing plug under the action of the spring force of the high pressure discharge, the refrigerant entering and release, ensure the refrigeration system to work normally, and the outside air can not enter the air conditioning system, avoid the pollution of the environment using fusible plug.

External and connecting dimensions

Nominal diameter DN(mm)
Nominal diameter
尺 寸 Dimensions(mm)
doLL1DN
402513512050
503216013065
8050175160100
10065220200125
150100285260200
200125350320250

Main parts material

NO.Name of partType C MaterialsType I MaterialsType VMaterials
1BodyWCBZG1Cr5MoZG15Cr1Mo1V
2Nozzle2Cr131Cr18Ni9Ti12Cr1MoVA
3Adjusting ring2Cr131Cr18Ni9Ti1Cr18Ni9Ti
4Disc2Cr1317-4PH17-4PH
5Guide sleeve2Cr131Cr18Ni9Ti1Cr18Ni9Ti
6RadiatorZG230-450ZG230-450ZG230-450
7BonnetZG230-450ZG230-450ZG230-450
8 Spring50CrVA50CrVA50CrVA
