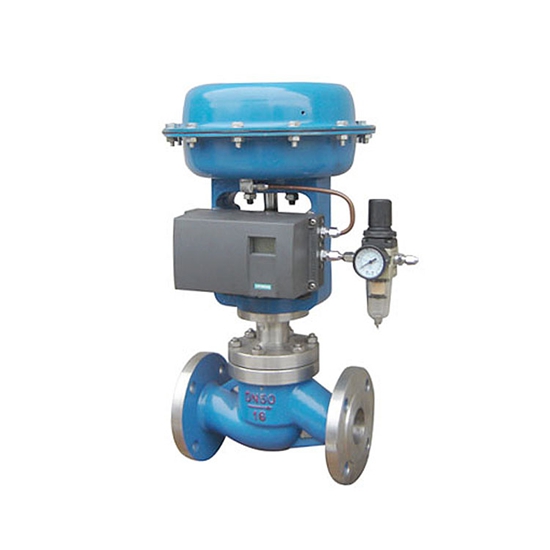

ZJHP fine small pneumatic control valve

Overview of ZJHP single seat pneumatic control valve
ZJHP series of films through single seat pneumatic control valve driven by the top structure, equipped with multi spring actuator. Has the advantages of compact structure, light weight, flexible action, fluid channel was streamlined, advantages of the 3 small pressure drop loss, valve capacity, flow characteristics of precision, convenient assembly and disassembly etc.. Widely used for precise control of gases, liquids and other media, the process parameters such as pressure, flow, temperature, liquid level remains in the given value. In particular the workplace to allow leakage star small valve and pressure.
This series of products are the standard type, adjust the cut-off valve, bellows seal type, jacket type insulation and other varieties. Nominal grade products are PN10, 16, 40, 64; body diameter range of DN20~300. Application of fluid temperature from -196 ℃ ~+560 ℃ range of different grades. Leakage star standard with IV or VI. Flow characteristics such as linear or percentage. A variety of different specifications can be selected.

Characteristics of ZJHP single seat pneumatic control valve
1 Top oriented single seat control valve, compact structure, few components, Yi Weixiu.
The 2 metal spool for a variety of occasions, as IV level leakage standard, structure of soft seal spool up to VI level leakage standard.
3 valve according to the principle of fluid mechanics design into a uniform low resistance flow, rated flow coefficient of 30%. Big adjustable range, inherent adjustable ratio 50:1. Implementing agencies for the use of multi spring structure, height reduction of 30%. , weight 30%.
4.ZJHPW shaped bellows seal valve, the stem form of mobile complete sealing, blocking the fluid leakage. With an insulating jacket type ZJHPJ valve, used for fluid cooling crystallization, solidification clogging situation.

Materials of main parts

The main technical parameters of single seat valve

Main performance index

Note: This product performance accords with GB/T4213 - 2008

Gas off type (positive effect) metal sealing type allows differential pressure gauge Company： MPa

Air to close (reaction) metal sealing type allows differential pressure gauge Company： MPa

Air to close (reaction) metal sealing type allows differential pressure gauge Company： MPa

Gas off type (positive effect) metal sealing type allows differential pressure gauge Company： MPa

Note that allows differential pressure gauge:
1 packing material for the PTFE
Flow valve 2 medium off in the opposite direction
Leakage in grade IV 3 metal seal type
4 numerical by nominal pressure, pressure, temperature limits
The 5 bellows seal type P2 ≠ 0 re check;

Dimensions and weight Company：mm

When ordering, please fill in "specification" or indicate the following contents:
One, if the order has not selected models, please provide the parameters are used to send us your
1, nominal diameter, nominal flow in coefficient Kv
2, the fluid properties (including the nominal pressure, temperature, viscosity and pH value "
3, the valve action form (gas closed or gas - Open)
4, flow at
5, in front of the valve, the valve pressure
6, valve body, broad core material
7, the input signal
8, with the attachment, the attachment type, so that we can correct for your selection.
Two, special requirements
1, special inspection
2, complete degreasing, water treatment;
3, no copper processing;
4, special interface, piping;
5, the use of vacuum conditions;
6, specify the color of the coating
7, special medium (gas, chlorine, nitrogen)
8, the use of stainless steel connections;
Three, if the unit has been selected from the design of our products, please click models directly to our sales department order
Four, the occasion is very important when using or complicated pipelines, please make cocoons provide design drawings and detailed parameters, from our experts to your review gatekeeper.
